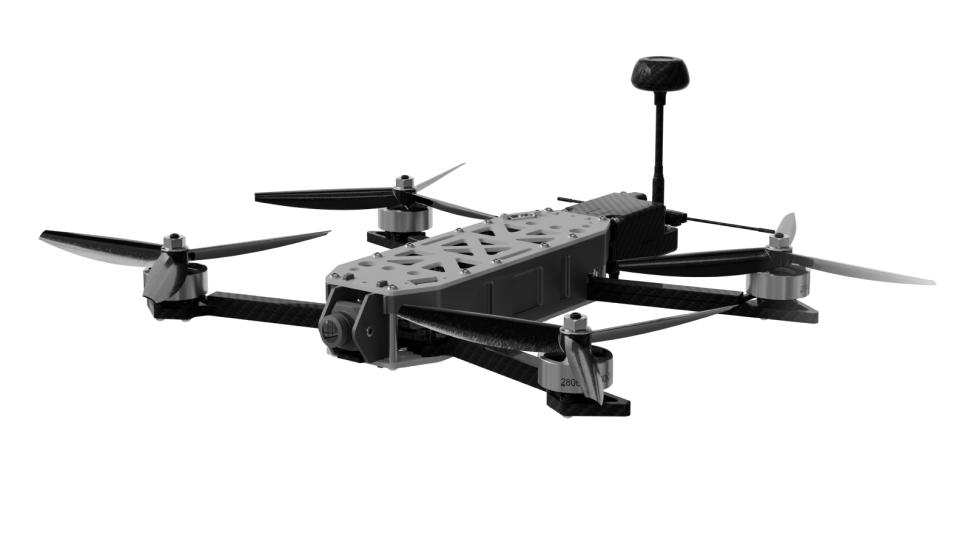

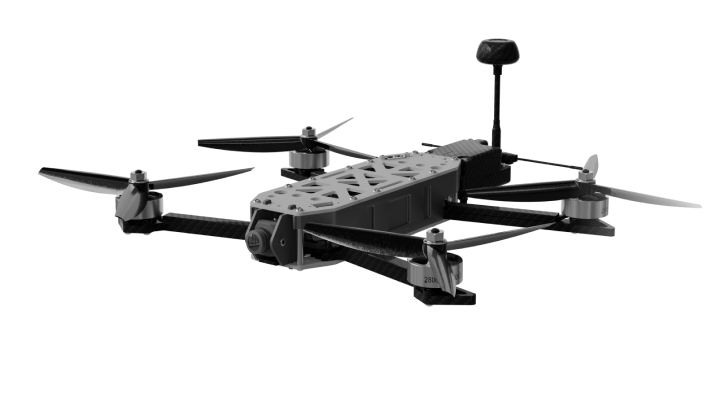

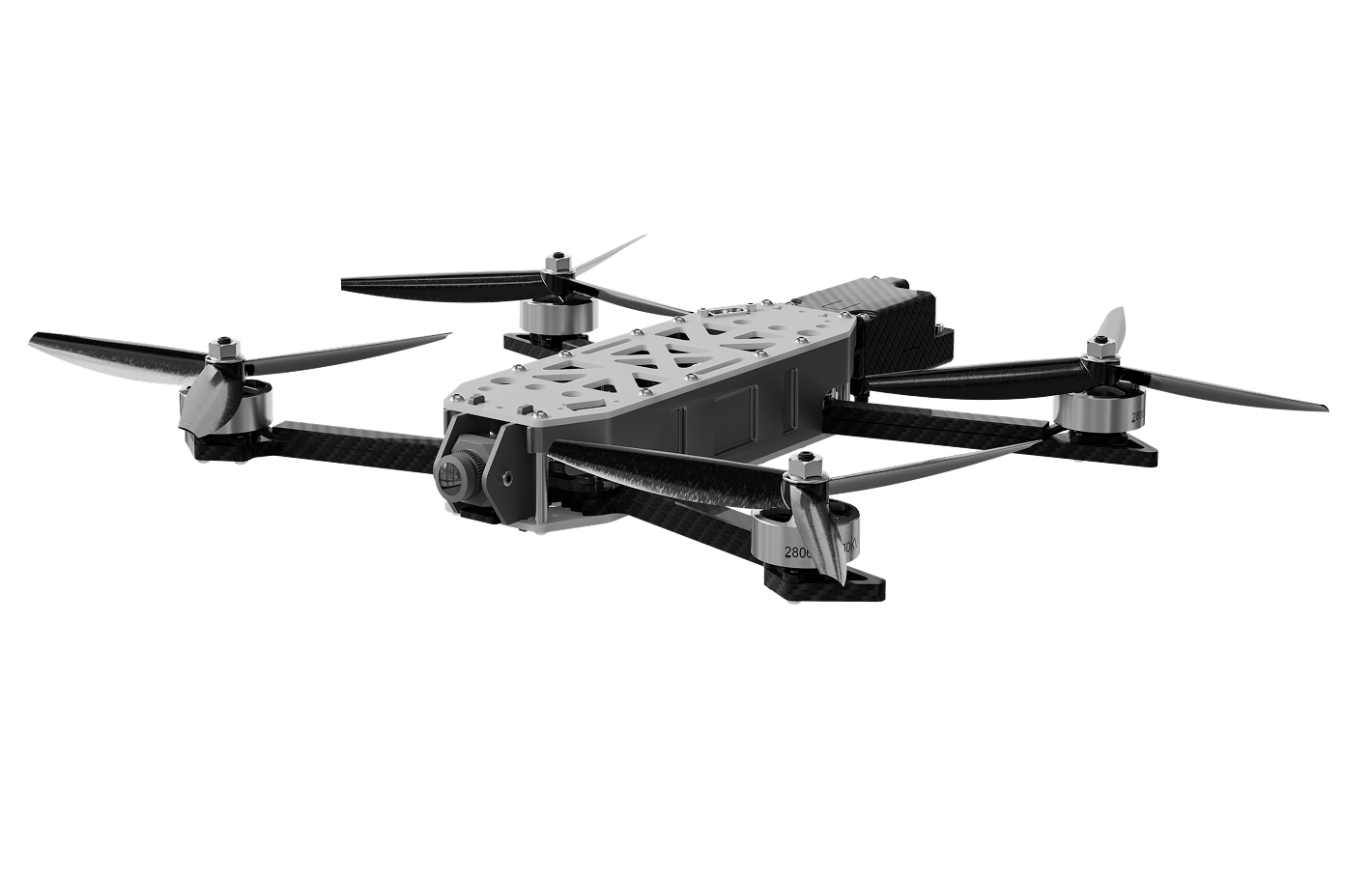

Ved’ma s metloy (Witch with a broom)
Purpose

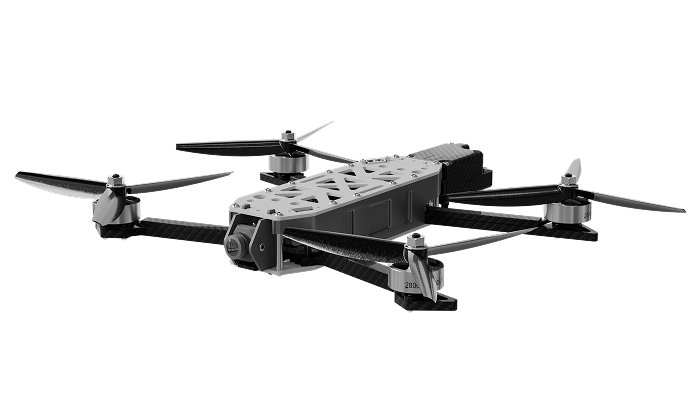

The Witch with a broom folding UAV provides fast deployment at the «up to 30 sec» position. A removable radio frequency moduleis used as a "broom",which provides frequency variabilityof control and videotransmission signals.
Characteristics
| Ved’ma s metloy | |
|---|---|
| Payload mass | 1.5 kg |
| Flight time without payload mass | 28 min |
| Flight time with payload mass | 12 min |
| Flight range | up to 5 km |
| Flight altitude | 1500 m |
| Cruising flight speed | 100 km/h |
| Maximum flight speed | 140 km/h |
| Frequency of control signal transmissions | 433/700/868/915/916/1015 MHz |
| Frequency of video signal transmissions | 1.2/1.5/2.4/4.9/5.8/6 GHz |
Advantages

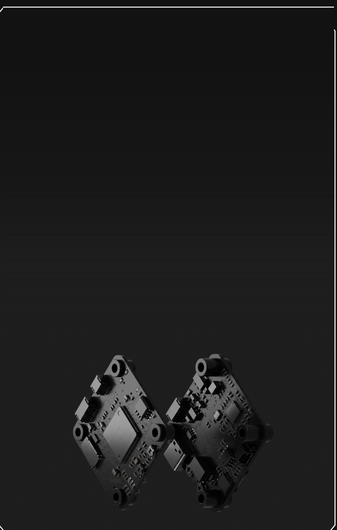

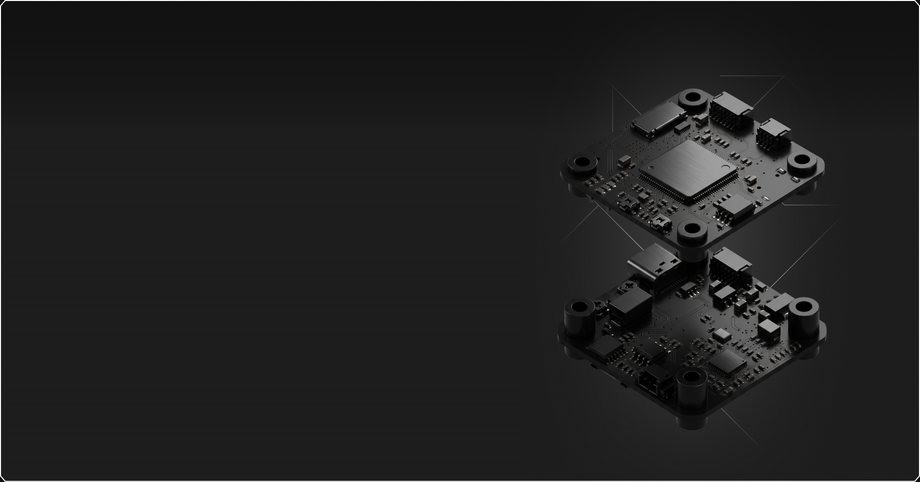

The removable module contains a video transmitter and a communication module. It does not require any additional firmware. The module is installed instantly.
