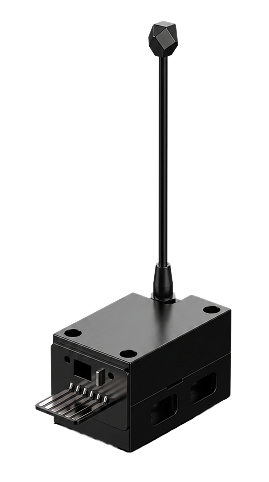

Replaceable frequency module Metla 2.0 (Broom 2.0)
Description
The replaceable frequency module is designed for installation on any UAV.
During production, firmware is selected, antennas are matched and filters are installed. On request, an adapter unit can be developed for any drone, or a drone with a built-in adapter unit can be supplied, which makes it possible to change the control and video channel according to your current radio environment.
An adapter can be installed on any multirotor UAV.
advantages
Characteristics
| Parameter | Value |
|---|---|
| Communication options | Germes, Kuznechik, ERLS, Pepa, Molniya, fiber optics |
| Video transmitters | 1.2/1.5/1.7/3.3/4.9/5.9 MHz |
Advantages
Radio-frequency compatibility tuning, antenna selection and re-flashing of the communication modules are done in laboratory conditions, which guarantees stable radio quality.

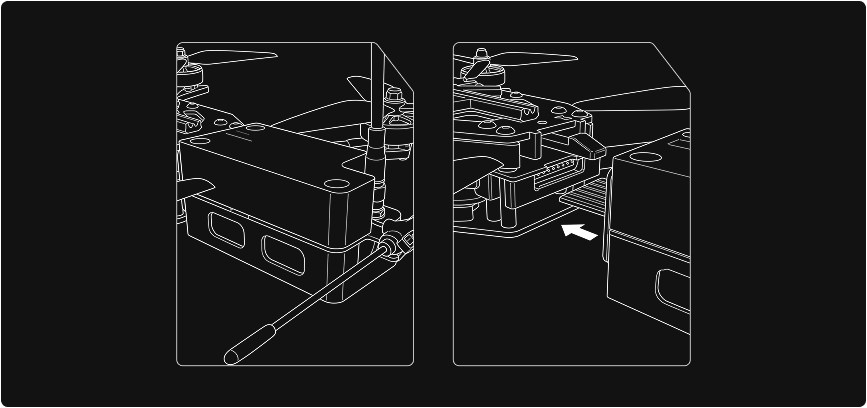

Setup and installation of the frequency module
«Metla 2.0»
Setup
Radio-frequency compatibility tuning, antenna selection and re-flashing of the communication modules are done in laboratory conditions, which guarantees stable radio quality.
Options and add-ons
- Adapters can be made for various UAV models
- Video transmitters and RC receivers supplied by the customer can be installed
- A video-signal inverter can be integrated into the replaceable radio module
Important
Installing the adapter on a VT-40 drone (or another model on request) is as simple as possible, requires no soldering and can be done in the field.
