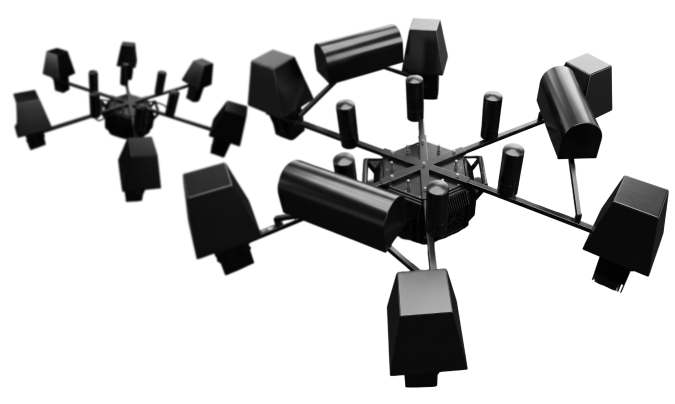

Meduza-ChS electronic warfare system, version 2
Purpose
Suppression of the control channels of FPV drones as well as DJI Mavic 3, DJI Mavic 3T and Autel Max 4T by means of wideband barrage jamming.
Characteristics
| Parameter | Value |
|---|---|
| Frequency bands, MHz | 250-1460, 1700-3000, 5150-5250, 5700-5900 |
| Output power | 50/75/100 W, depending on the band |
Advantages
- 2 generators
- 27 omnidirectional antenna-feeder units
- Continuous circular pattern: 360° in azimuth, 180° in elevation
- Circular polarisation – maximum jamming efficiency
- Response time: 1 second
