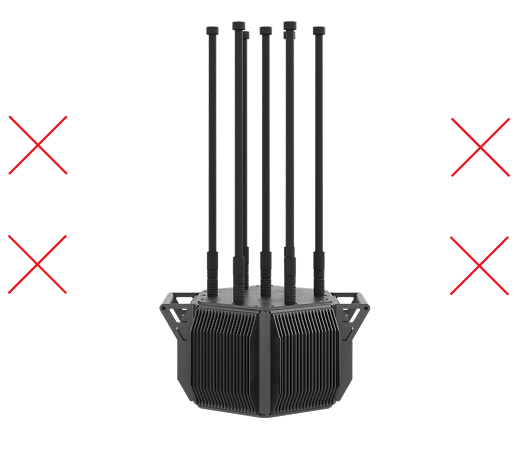

The Meduza UAV suppression system
Purpose
The Meduza UAV suppression system is designed for radio electronic interference with control, telemetry, and navigation channels of military and commercial UAVs.
Its use can significantly reduce the risks associated with undesirable impact UAVs on ensuringthe safety and normal functioning of facilities and personnel.
Application
Military use of «Medusa»
- Defending machines and war infrastructure objects positions from the enemy’s UAV
- Enemy’s UAV reconnaissance duties counteraction
Civil use of «Medusa»
- Defending important civil infrastructure enterprises from uncontrolled UAV flights
- Safeguarding of security over important civil objects, enterprises ecc against FVP UAV attacks
Characteristics
| Meduza | ||
|---|---|---|
| For camouflage, the device can be buried using remote antennas or a cord set to bring antennas out | Channel-by-channel IP control with connection to a PC or networking «Optional» | For camouflage, the device can be buried using remote antennas or a cord set to bring antennas out |
| Simultaneous operation mode for all frequencies | Possibility of installation on a mast | Channel-by-channel IP control with connection to a PC or networking «Optional» |
| 24/7 continuous operation | without restrictions | Simultaneous operation mode for all frequencies |
| Possibility of installation on a mast | ||
| 24/7 continuous operation | without restrictions | |
| Suppression radius, confirmed by protocols | 700-1000 m | |
| Water protection | IP 65 | |
| It works in any conditions | from −40 to +50 | |
| Consumption | up to 950 W | |
| Voltage | 220 Volts | |
| Dimensions | 545 * 615 * 1245 mm | |
| Weight | no more than 50 kg | |
| For military and civilian needs | more than 250 sets | |
| Suppression channels | 433/500/600/700/900/2.4/5.8 | |
| Power, W | 50/50/50/50/50/100/100 |
Advantages
In modern firmware, FPV connection is resistant to standard electronic warfare systems.
The Meduza electronic warfare system uses a program apparatus complex of the jamming device (PAC TsFP) of its own design, which increases the efficiency of UAV suppression by 1.5-2 times compared to standard «white noise» suppression.
