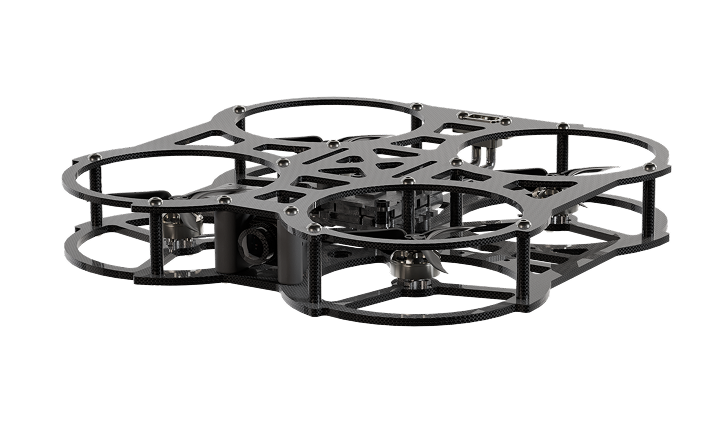

Blinchik (Pancake)
Purpose
It allows the stormtrooper to use it as a reconnaissance aircraft, and in certain configurations it can carry explosives.
Control
It supports one-button joystick control — forward, backward, left, right for visual observation, including «peeking» around the corner in one way or another.
Stabilization
In stabilization mode, the drone can automatically hang 2 m above the ground
Protection
Equipped with a protective case that can withstand impacts with a wall, ground and other obstacles.
Characteristics
| Scout | armed | |
|---|---|---|
| Weight | 300 gr | 745 gr |
| Payload mass | 0 | 300 gr |
| Flight time | 10 min | 10 min |
| Flight range | 1 km | 1 km |
| Flight altitude | 200 m | 200 m |
| Maximum flight speed | 100 km/h | 80 km/h |
| Frequency of control signal transmissions | 868 MHz | |
| Frequency of video signal transmissions | 4.9/5.8 GHz | |
| UAV dimensions | 207*207*30 mm | 277*261*35 mm |
Advantages
A video camera without an infrared filter allows you to get a good image in low light. The design of the drone makes it as easy as possible for operators to use it and reduces training time.
The drone has a powerful 2.5 W video transmitter on board, which allows it to «break through» concrete floors at a distance of 500 meters and overcome enemy interference well.
