Anti-drone protection complex
Purpose
Detection, tracking and destruction of aerial targets of the UAV class.
Kit composition

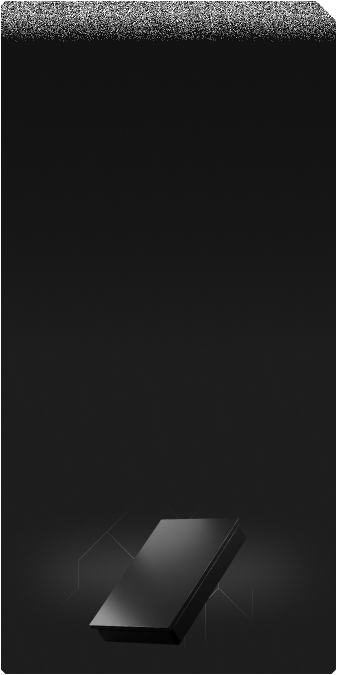

Radar

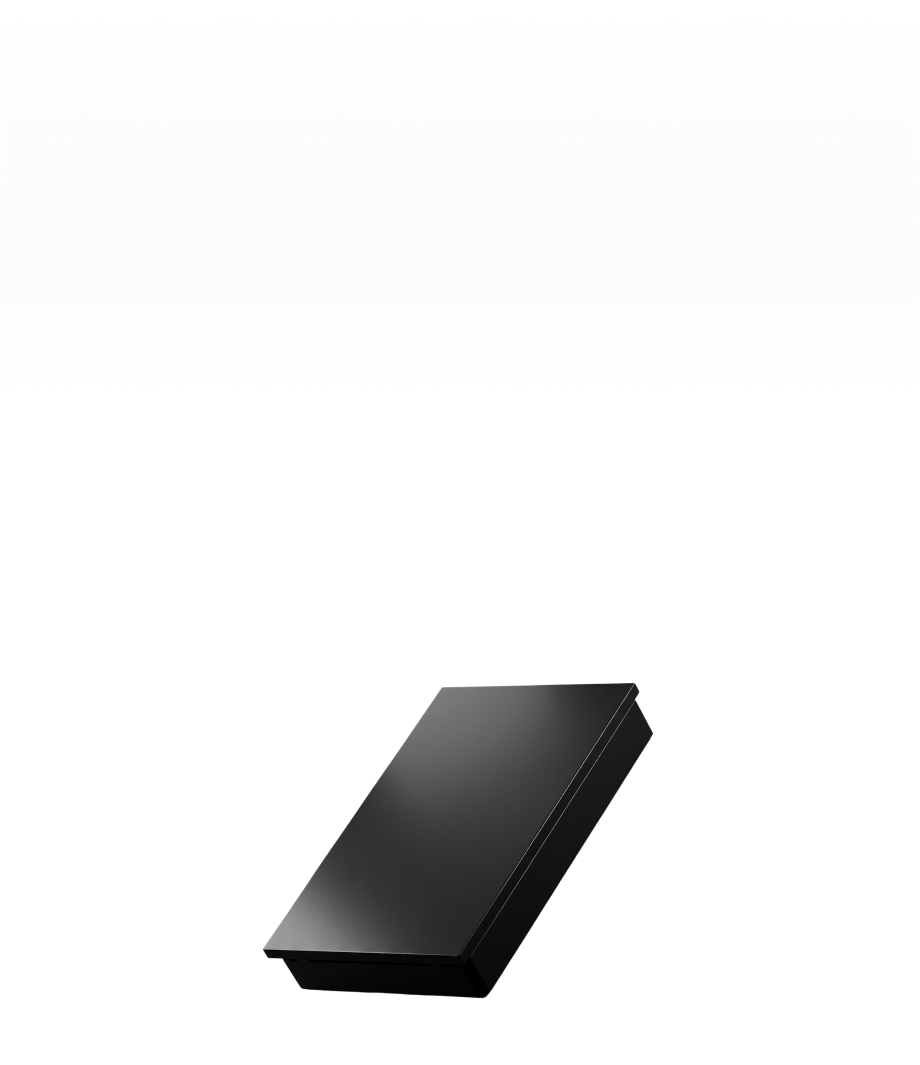

Radar station
- Performs continuous all-round scanning of the airspace.
- Detects small-size targets at a range of up to 20 km.
- Automatically issues target designation to the launchers.
- Detection range: up to 20 km
- Mode: continuous scanning
- Simultaneous tracking: one or several targets

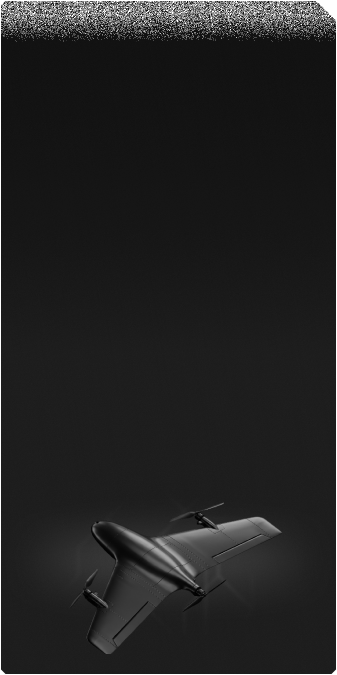

Interceptor UAV
Fixed-wing kamikaze strike drone
- The interceptor is a fixed-wing kamikaze UAV.
- Once the radar detects a target, the interceptor is guided to the calculated intercept point.
- The operator picks the attack point to minimise damage from the falling UAV.
- Engagement range: up to 30 km
- Target speed: up to 160 km/h
- Control: operator + automation
How it works
1
Detection
The radar detects a target at a range of up to 20 km and takes it for tracking
2
Target lock
The system locks on the target automatically, the operator confirms the threat
3
Launch
The operator picks the intercept point. The interceptor UAV is launched
4
Guidance
The UAV reaches the calculated area. Automatic terminal guidance corrects the course
5
Destruction
The kamikaze UAV destroys the target at the chosen point in space
Characteristics
| Parameter | Value |
|---|---|
| Radar detection range | 20 km |
| Engagement range | 30 km |
| Maximum target speed | 160 km/h |
| Operating mode | 24/7 |
| Deployment | stationary / mobile version |
| Interceptor | fixed-wing kamikaze UAV |
| Control system | combined: operator + automatic terminal guidance |
| Protection layout | layered — several interception lines |
| Simultaneous targets | several targets within one time interval |
| Choice of attack point | within the engagement zone to minimise damage |
The air-defence complex provides
detection, tracking
and guaranteed destruction
of UAVs of any complexity
- A complete solution:
radar + interceptor UAV - Mobile or stationary
deployment - Minimal collateral damage thanks to the choice of attack point
